0.5mm Pitch Flat Flex Cable (FFC) Extra Flexible Sn Plated

0.5mm Pitch Flat Flex Cable (FFC) Extra Flexible Sn Plated

Conductor:

Material: Copper

Thickness: 0.10mm nominal (Standard)

Plating: 0.4 μm Tin min

Insulation tape:

Material: Polyester + Flame retardant adhesive

Thickness: 0.086mm nominal

Color: White

Reinforcement tape:

Material: Polyester + Adhesive

Thickness: 0.15mm nominal

Inquire Now Next Product

product details

2D(PDF) Drawing

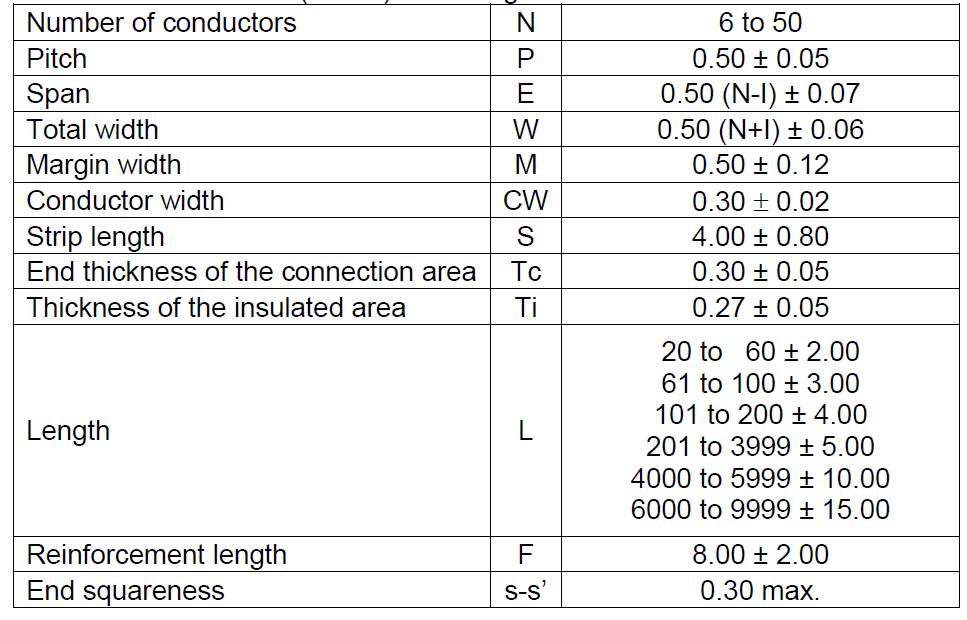

Specifications:

0.5mm Pitch Flat Flex Cable (FFC) Extra Flexible Sn Plated
