Aug. 30, 2024
Lianda Company is proud to introduce its latest innovation in connector technology—the 1.27mm Pitch Pin Header
Connector. Designed for superior performance and adaptability, this connector is a vital addition to any electronics
assembly requiring reliable and compact connectivity.
Featuring a dual row type configuration with 2X9 pin layout, this connector is engineered for precision and efficiency.
With a pitch of just 1.27mm, it provides a compact and secure connection, ideal for applications where space is at a
premium. The connector's post dimension is 9.0mm, while the tail dimension measures 1.2mm, ensuring a snug fit and
stable connection within a variety of circuit boards.
This pin header connector is designed with a through-hole mounting style, which enhances its stability and reliability in
permanent installations. The inclusion of a cap adds an extra layer of protection and ease of handling during assembly,
preventing damage and ensuring longevity.
The connector is gold plated, which improves conductivity and resistance to corrosion. This gold plating ensures optimal
performance and durability, making it suitable for high-precision electronic applications, such as modules, smart displays,
and embedded systems. The connector's quality is further validated by its UL certification, with E503010 UL number,
assuring compliance with stringent safety and quality standards.
Packaged in tape and reel ， this pin header connector is convenient for automated assembly processes, reducing
handling time and streamlining production.
Lianda's 1.27mm Pitch Pin Header Connector represents a blend of innovation and reliability, making it an excellent choice
for designers and engineers seeking dependable connectivity solutions in advanced electronic applications.
LDCONN datasheet (PDF file):

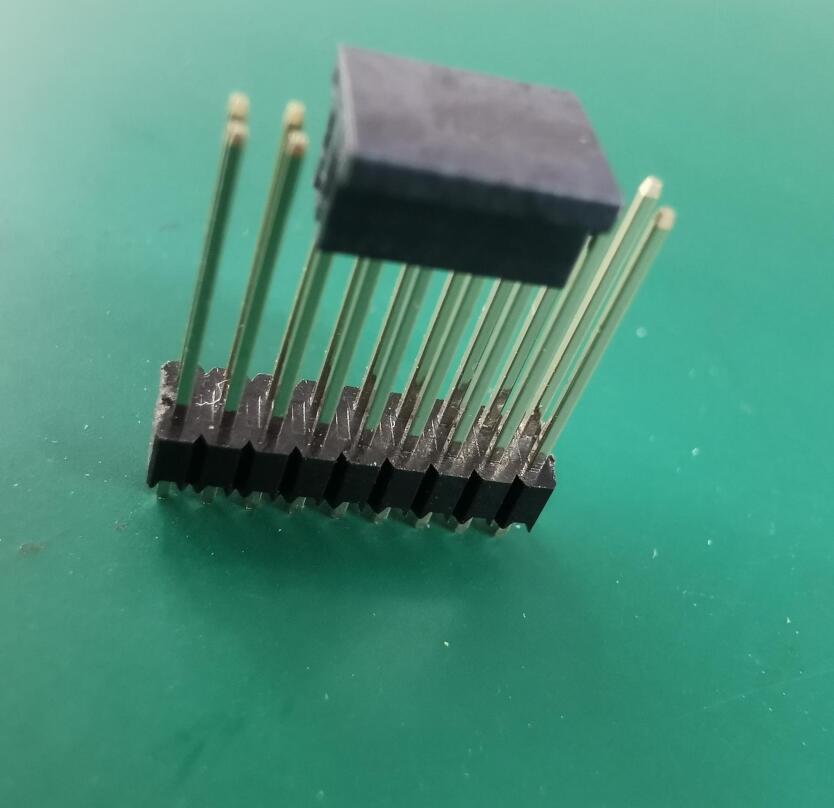

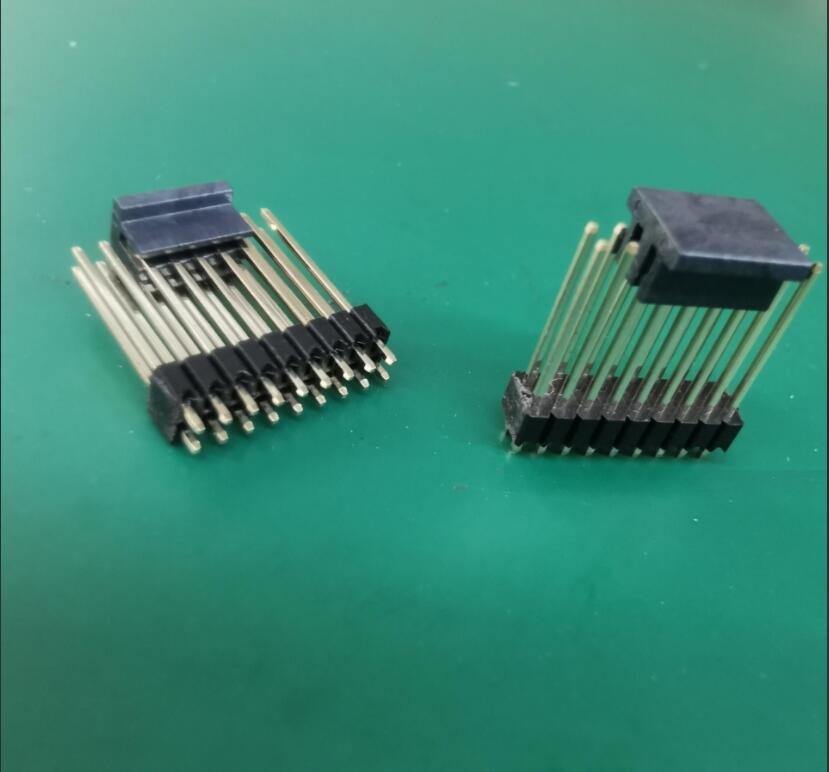

LDCONN picture :
