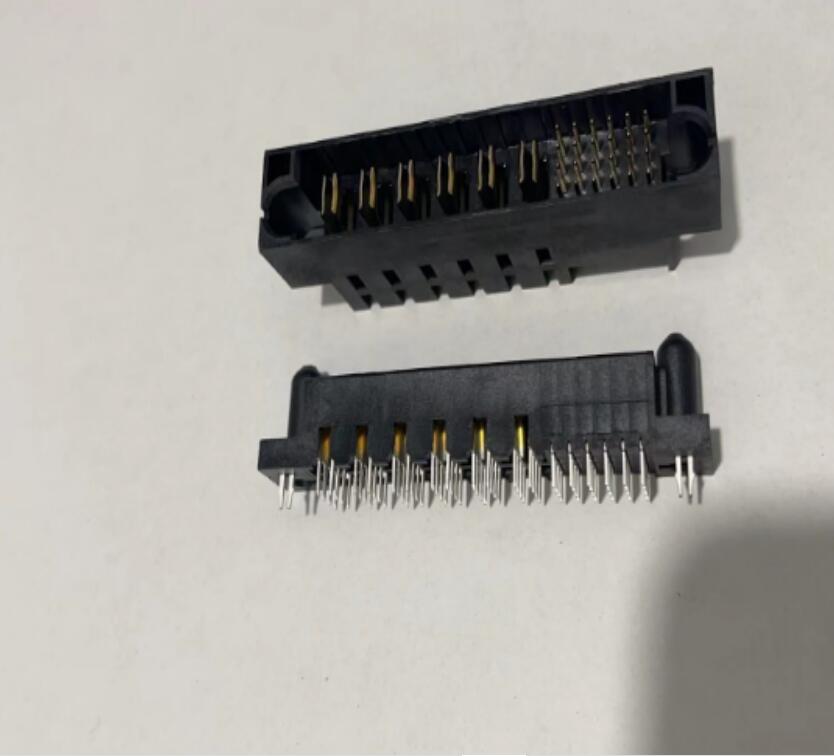

SAMTEC alternative part high current connector from Lianda

SAMTEC alternative part high current connector from Lianda

1. Material:

A. Terminal high performance copper alloy

B. Rubber shell: high temperature resistant thermoplastic. UL94V-0, black.

we also supply altertive part of Molex and JST .


product details

Specifications:

1. Electroplating

A. Power terminal: gold-plated in the contact area, fog-plated tin in the solder area, the whole terminal nickel base;

B. Signal terminal: gold-plated in the contact area, mist-plated tin in the solder area, the whole terminal nickel base;

C. The fixed foot is coated with mist tin on a nickel base

2. Electrical performance requirements:

Rated voltage: Power terminal 250 Vac; Signal terminal 50 Vac; Rated current: Power terminal 40 A MAX, signal terminal 2.5 A

MAX; Voltage resistance: 2500 VAC power terminal 1 minute no breakdown, 1000 VAC signal terminal 1 minute no breakdown, insulation: 2000

MEG OHM MIN power supply terminal; 2000 MEG OHM MIN signal terminal; Contact resistance: Power terminal ≤2mΩ; Signal terminal

≤20mΩ; Operating temperature -40° T0 +125°C

3. Mechanical performance requirements:

Service life 250 times

4. Packing method:

Blister box packing

5. Products comply with the latest ROHS standards
