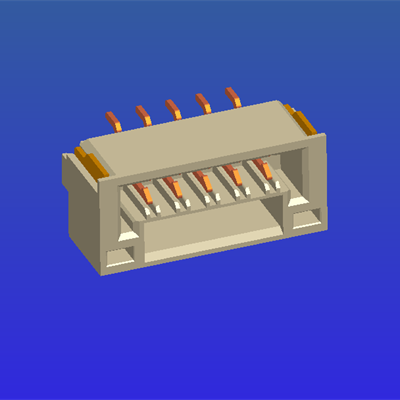

Wafer ph1.25 horizontal SMD with lock

art No: L102XX-11X0XXX
Mating:
Packing:Reel
Delivery time:7~15 Day
UL: Yes
ROHS Compliant

Inquire Now None

product details

2D(PDF) Drawing

Specifications:

Specifications:

Rating current: 1.0AMP AC/DC
Rating voltage: 100V AC/DC
Contact resistance: 20mΩ Max
Withstand voltage: 500V AC/DC
Insulation resistance: 100mΩ Min
Operation temperature: -25°C to + 85°C
Contact material: Brass
Contact plating: Au or Sn over Ni
Insulator material: LCP
