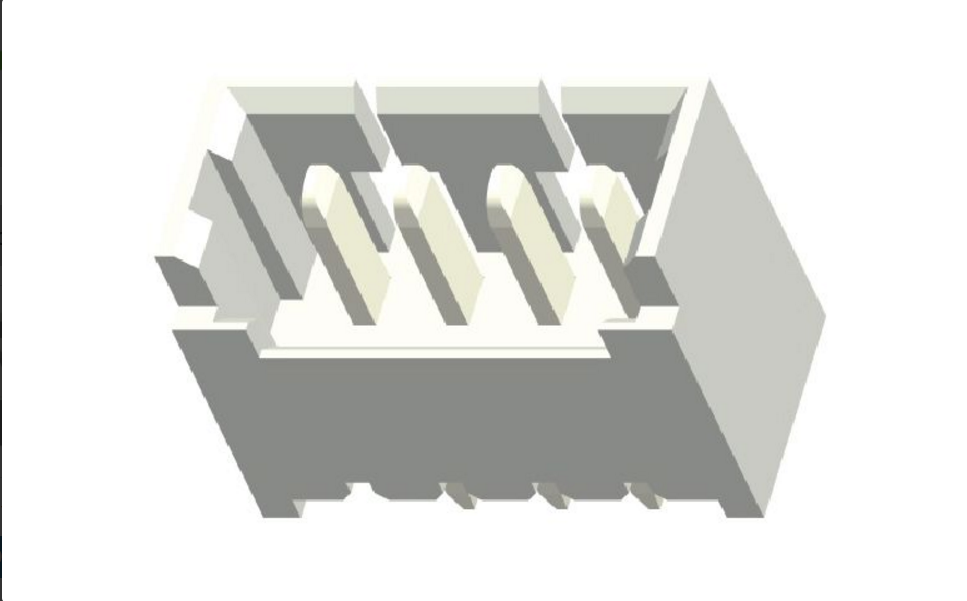

PH1.25mm Wafer, Single Row, DIP Straight Type Wafer Connectors

Part No: L102XX-10X0XXX
Mating:
Packing:Bag
Delivery time:7~15 Day
UL: Yes
ROHS Compliant

Inquire Now None

product details

2D(PDF) Drawing

Specifications:

Rating current: 1.0AMP AC/DC
Rating voltage: 100V AC/DC
Contact resistance: 20mΩ Max
Withstand voltage: 500V AC/DC
Insulation resistance: 100mΩ Min
Operation temperature: -25°C to + 85°C
Contact material: Brass
Contact plating: Au or Sn over Ni
Insulator material: PA6T
