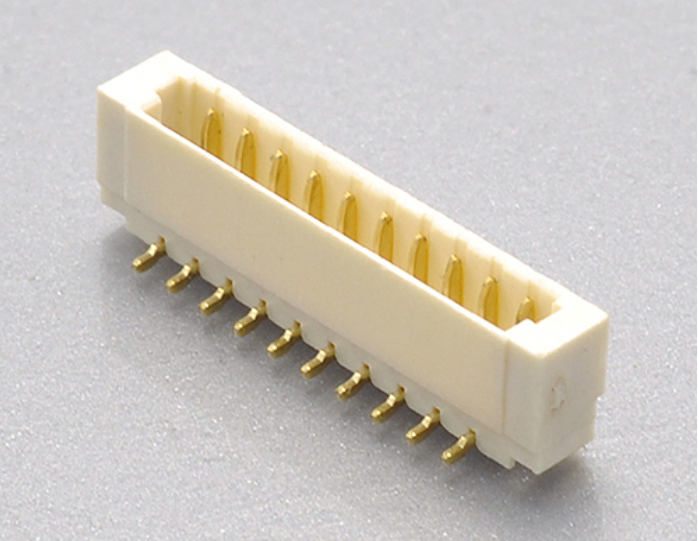

L0801AWV-XX-F4MB 1 -X-X

Part No:L0801AWV-**F2MB-*-X

MPQ:1500PCS
Packing:Reel
Delivery time:7~15 Day
UL: Yes
ROHS Compliant

Inquire Now None

product details

2D(PDF) Drawing

Specifications:

Rating current: 0.5AMP AC/DC
Rated voltage: 30V AC/DC
Contact resistance: 20mΩ Max
Withstand voltage: 200V AC/Minute
Insulation resistance: 100mΩ Min
Operation temperatures: -25°C to + 85°C
Contact material: Phosphor bronze
Contact plating: Tin-plating
Insulator material: PA66 (UL94V-0)
Insulator color: White
Applicable wire: AWG#32
Insulator O.D.: 0.38mm
